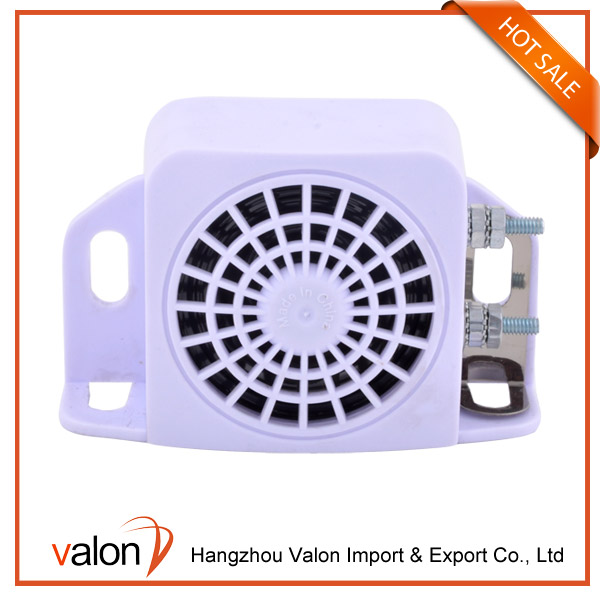

0406W-1280-97

Feature:

1. Medium duty, white sound reversing alarm, ideal for vehicles working in typical ambient noise levels.

2. The revolutionary white sound reversing alarm prevents noise complaints from local residents and is approved for use during night time deliveries.

3. The distinct “ssh ssh” sound is less irritating than tonal beeping alarms, preventing workers from becoming desensitized to the warning.

4. The sound emitted is directional and therefore instantly locatable, enabling pedestrians to work out exactly which vehicle is moving and in which direction, allowing them to move to safety.

Technical parameters
Application

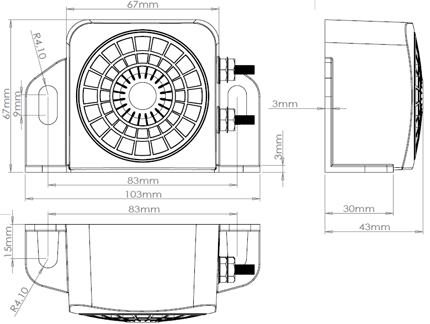

Mounting Size

Sound type	White noise
Sound level	97±4dB(A) at 1.2m (SAE J994 TYPE C) with 28VDC applied.
Working voltage	12 to 80 volt DC
Working Current	150 mA±40mA @12VDC
Sealing	Encapsulated to protect from dust, moisture and vibration.
Housing	White, polycarbonate.
Operating Temperature	-30°C to +55°C.
Connection	Two #8-32 UNC terminal studs.
Pulse rate	70 pulses per minute typical.
Dust proof/water resistant	IP68

Medium duty, suitable for Bus, Coach, Freight, Van and Forktruck.
