Feature:
1. 500lm luminous flux, low power consumption.
2. Heavy duty steel base.
3. IP68 Weatherproof for all kind of rugged environment.
4. Reverse polarity and voltage spike protected.
5. Long work life: 20,000hours.
|

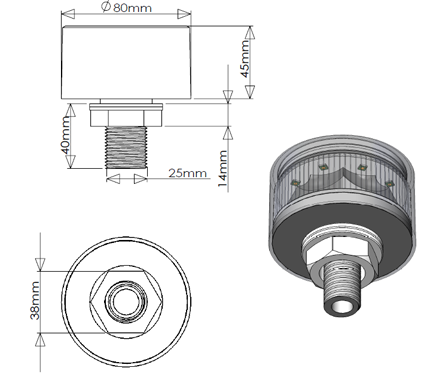

Dimensions |
80mm DIA x 87mm H. |
|
Wide Voltage |
12-80V DC. |
|
Power draw |
800mA at 12VDC. |
|
LEDs |
8x High-porformance 3W LEDs, 500lm. |
|
Flash pattern |
Double flash |
|
Flash frequency |
60-70 flashes/min |
|
Sealing |
Clear epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration. |
|
Housing |
Polycarbonate lens + steel base. |
|
Operating Temperature |
-30°C to +55°C. |
|
Connection |
RV2*0.5 |
|
Dust proof/water resistant |
IP68. |
Heavy duty vehicles, industrial trucks and equipment.
