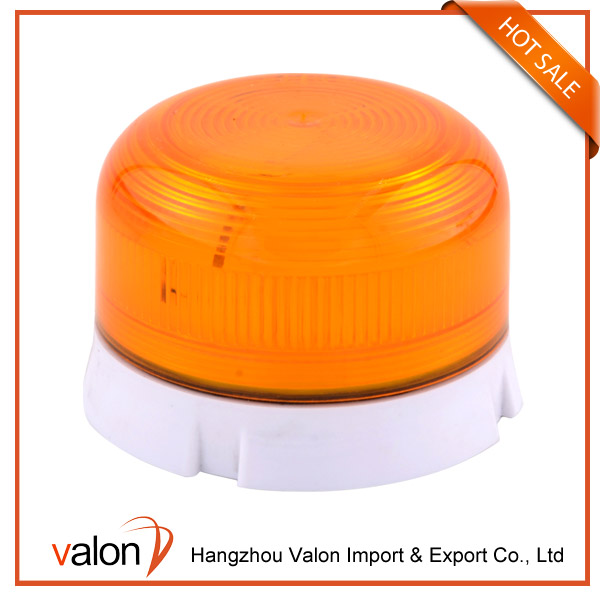

Feature:

1. Epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration.

2. Polycarbonate plastic lens and base for vibration resistance and heat dissipation

3. The strobe is made available in single flash units.

4. Reverse polarity and voltage spike protected.

5. Mounting hardware and rubber gasket included.

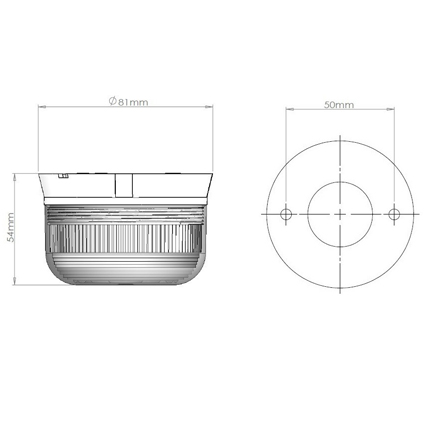

Dimensions	81mm Dia x 54mm H.
Wide Voltage	12-24V DC.
Power draw	250mA/single flash at 12VDC.
Flash energy	1.5 Joules.
Sealing	Epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration.
Housing	Polycarbonate.
Operating Temperature	-30°C to +55°C.
Connection	Two terminals
Flashing rate	60-70 flashes per minute.
Dust proof/water resistant	IP66.

Forklifts, electrical vehicles, and industrial trucks and equipment.
