Feature:
1. 170lm luminous flux, low power consumption.
2. Heavy duty steel base.
3. IP68 Weatherproof for all kind of rugged environment.
4. Reverse polarity and voltage spike protected.
5. Long work life: 20,000hours.
|

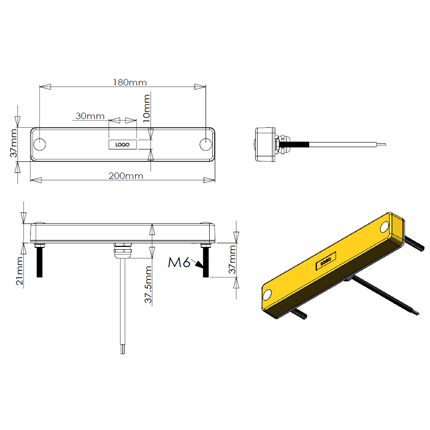

Dimensions |
200mm x 37mm x 58mm. |
|
Wide Voltage |
10.5-110V DC. |
|
Power draw |
400mA at 12VDC. |
|
LEDs |
24x 5mm LEDs, 170lm. |
|
Flash pattern |
Alternate flashing |
|
Flash frequency |
60-70 flashes/min |
|
Sealing |
Clear epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration. |
|
Housing |
Polycarbonate lens + steel base. |
|
Operating Temperature |
-30°C to +55°C. |
|
Connection |
RV2*0.5 |
|
Dust proof/water resistant |
IP68. |
Heavy duty vehicles, industrial trucks and equipment.
