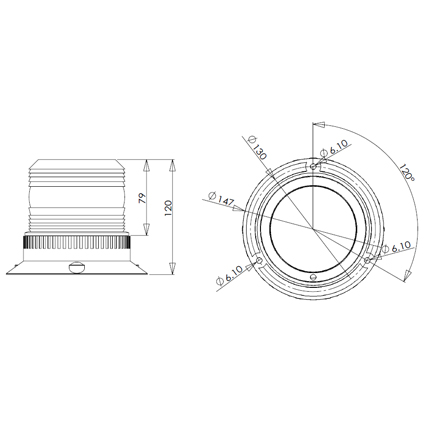

Dimensions

147mm Dia x 120mm H.

Wide Voltage

12-80V DC.

Power draw

400mA/single flash at 12VDC.

LEDs

With 45pcs cap LED’s.

Flash pattern

1. Single flash high intensity                                                             2. Double flash high intensity                                                            3. Quad flash high intensity                                                            4. Eight flash high intensity                                                            5. Revolving low intensit

6. Constant low intensity.

Sealing

Epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration.

Housing

Polycarbonate.

Operating Temperature

-30°C to +55°C.

Connection

30cm AWG18 red and black wires.

Dust proof/water resistant

IP66.
