Feature:
1. This LED warning beacon is equipped with 5 high intensity one watt LED’s.
2. 4 selectable flash pattern.
3. Weatherproof ready for exterior mounting.
4. Reverse polarity and voltage spike protected.

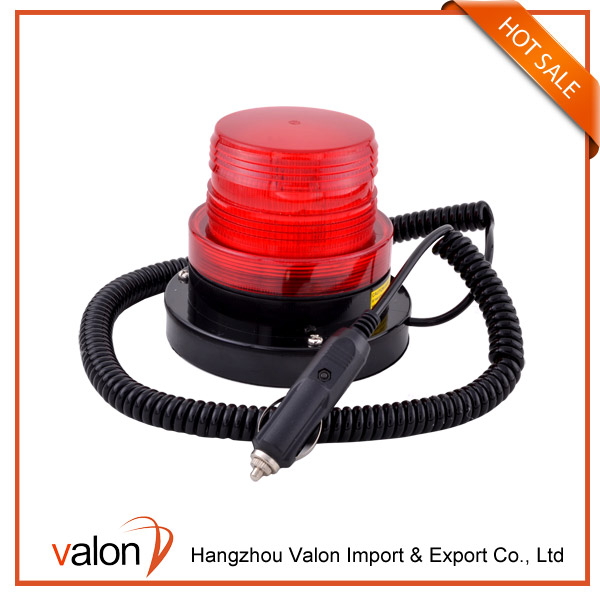

5. With strong magnetic base and cigarette adapter.
|

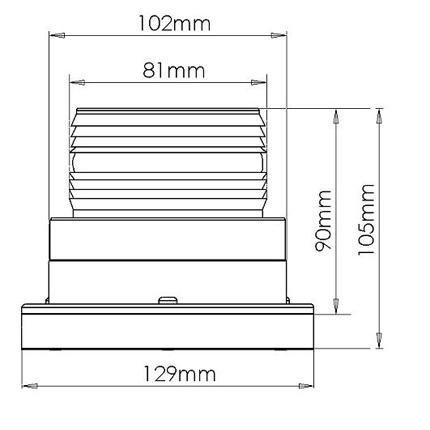

Dimensions |
129mm Dia x 105mm H. |
|
Wide Voltage |
12-80V DC. |
|
Power draw |
500mA/single flash at 12VDC. |
|
LEDs |
With 5 pcs high intensity 1W LED. |
|
Flash pattern |
1. Single flash high intensity 2. Double flash high intensity 3. Quad flash high intensity 4. Revolving low intensity. |
|
Sealing |
Epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration. |
|
Housing |
Polycarbonate. |
|
Operating Temperature |
-30°C to +55°C. |
|
Connection |
With magnetic base and cigarette adapter, 54cm length coiled cable. |
|
Dust proof/water resistant |
IP66. |
Forklifts, electrical vehicles, industrial trucks and equipment.
