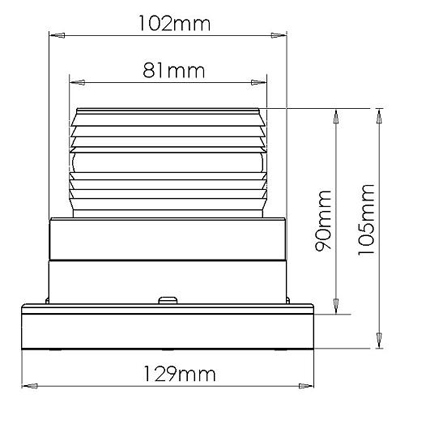

Dimensions

129mm Dia x 105mm H.

Wide Voltage

12-80V DC.

Power draw

400mA/single flash at 12VDC.

LEDs

With 4 pcs high intensity 1W LED.

Flash pattern

1. Quad flash low intensity

2. Double flash low intensity

3. Single flash low intensity

4. Quad flash high intensity

5. Quad and Double flash, high and low intensity simultaneously

6. Revolving low intensity.

Sealing

Epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration.

Housing

Polycarbonate.

Operating Temperature

-30°C to +55°C.

Connection

With magnetic base and cigarette adapter, 54cm length coiled cable.

Dust proof/water resistant

IP66.
