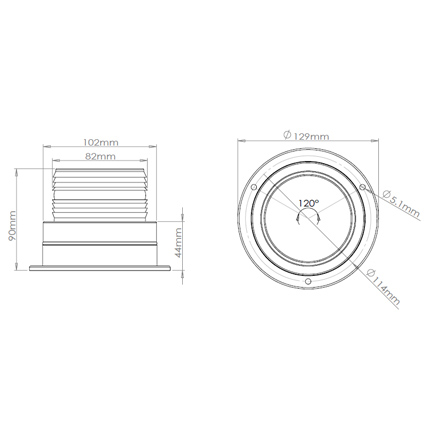

Dimensions

129mm Dia x 90mm H.

Wide Voltage

12-80V DC.

Power draw

1.500mA/single flash at 12VDC.

LEDs

With 6 pcs high intensity 3W LED.

Flash pattern

1. Single flash high intensity

 2. Double flash high intensity

3. Quad flash high intensity

4. Revolving high intensity.

Sealing

Epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration.

Housing

Polycarbonate.

Operating Temperature

-30°C to +55°C.

Connection

30cm AWG18 red and black wires.

Dust proof/water resistant

IP66.
