VL0101_45 clear

Feature:

    1.This LED warning beacon is equipped with 45pcs cap LED’s.
    2.6 selectable flash pattern.
    3.Weatherproof ready for exterior mounting.
    4.Reverse polarity and voltage spike protected.
    5.Mounting hardware and rubber gasket included.
  • Technical parameters
  • Application

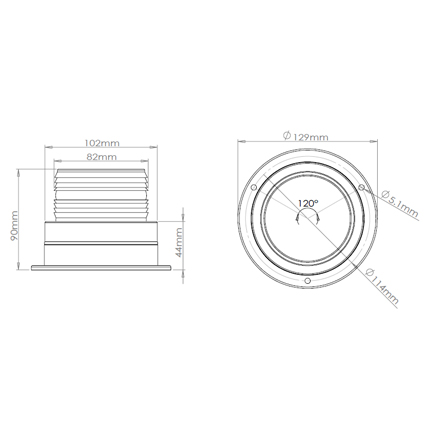

  • Mounting Size

    Dimensions

    129mm Dia x 90mm H.

    Wide Voltage

    12-80V DC.

    Power draw

    400mA/single flash at 12VDC.

    LEDs

    With 45pcs cap LED’s

    Flash pattern

    1. Single flash high intensity

    2. Double flash high intensity

    3. Quad flash high intensity

    4. Eight flash high intensity

    5. Revolving low intensit

    6. Constant low intensity.

    Sealing

    Epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration.

    Housing

    Polycarbonate.

    Operating Temperature

    -30°C to +55°C.

    Connection

    30cm AWG18 red and black wires.

    Dust proof/water resistant

    IP66.

    Forklifts, electrical vehicles, industrial trucks and equipment.
