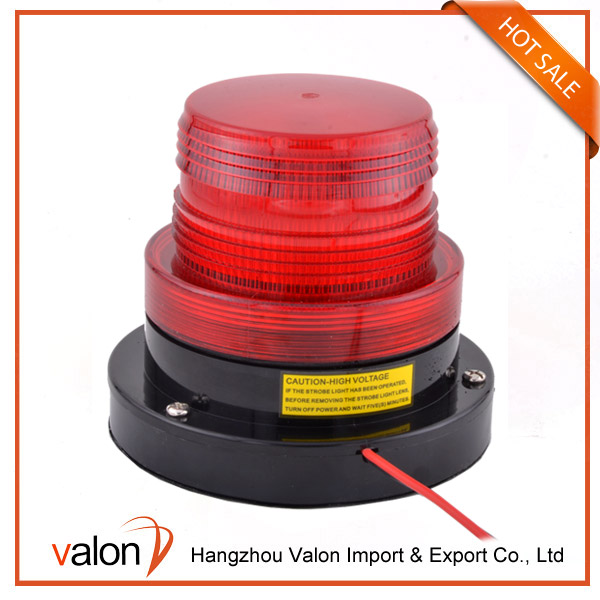

VL0201HM-Red-Zhejiang Valon Technology Co., Ltd

Prouducts Category

Home>Prouducts Category

Feature:

1. 1.8 inch long flash tube snaps in, making replacement quick and easy.

2. Epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration.

3. Polycarbonate plastic lens and base for vibration resistance and heat dissipation

4. The strobe is made available in single / double / double + single flash units.

5. Reverse polarity and voltage spike protected.

6. With strong magnetic base.

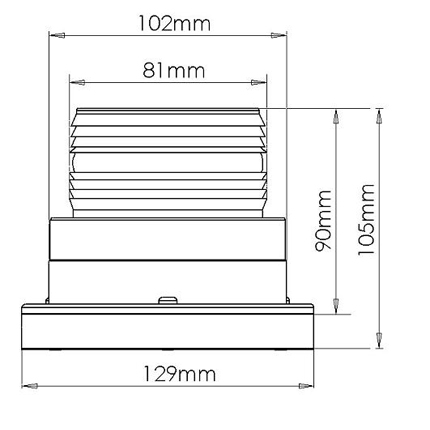

Dimensions	129mm Dia x 105mm H.
Wide Voltage	12-110V DC.
Power draw	250mA/single flash, 500mA/double flash at 12VDC.
Flash energy	1.5 Joules.
Sealing	Epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration.
Housing	Polycarbonate.
Operating Temperature	-30°C to +55°C.
Connection	30cm AWG18 red and black wires.
Flashing rate	70-80 flashes per minute.
Dust proof/water resistant	IP66.

Forklifts, electrical vehicles, and industrial trucks and equipment.
